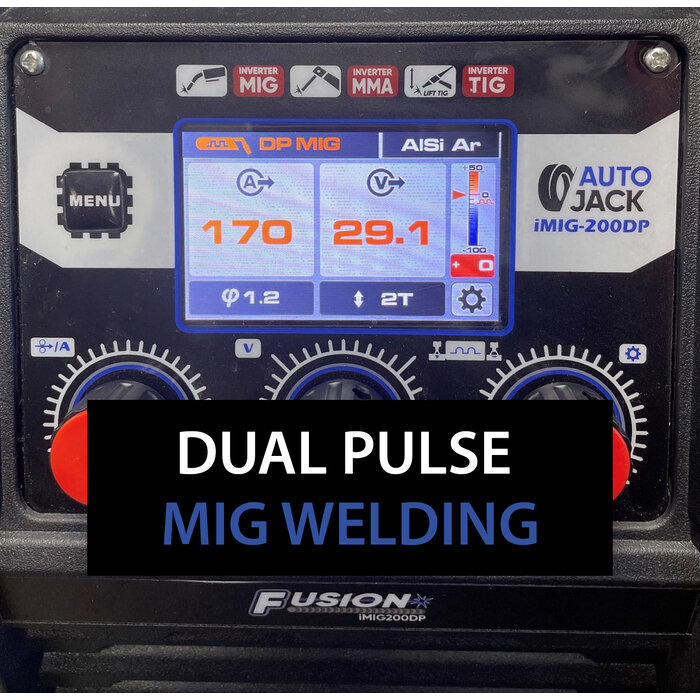

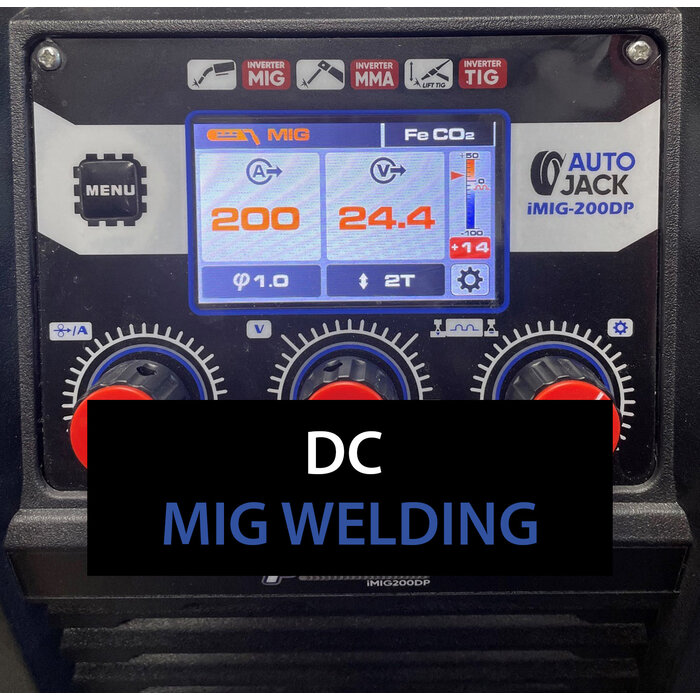

IMIG-200DP Synergic Double Pulse Dual Action MIG Welder

This multi-function MIG welder that also incorporates a MMA welder in the one unit.

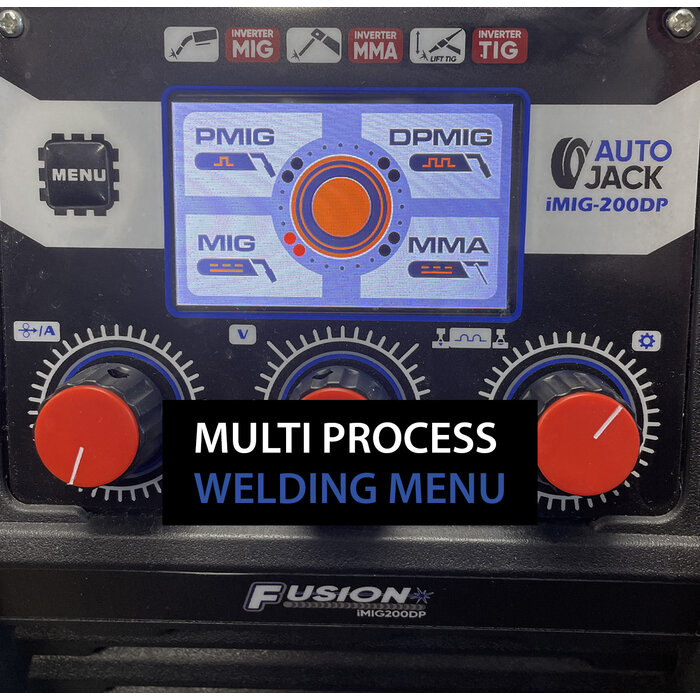

Using inverter technology, this unit will allow you to do standard MIG, pulse MIG
and double pulse MIG welding, making it ideal for aluminium and copper as well as
doing mild and stainless steel. With its easy to use digital display and synergic
capabilities, this welder is ideal for both the hobbyist and professional alike.

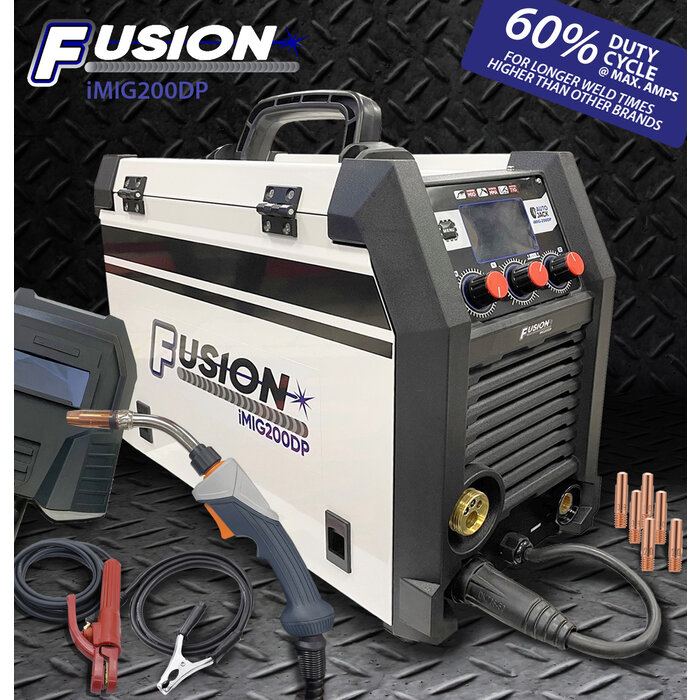

Complete with MIG torch, electrode holder, earth clamp, hammer, gas pipe,
tips, spare roller, mask and is powered with a 16amp plug

Features

• Compact, portable device
• Using the latest IGBT inverter technology
• 60% Duty cycle at MAX Amps for longer weld time
• Maximum protection against heat, overcurrent and other hazards
• AUTO HOT START - This allows us to increase the current at startup for faster ignition of the welding arc
• ANTI STICK - This function prevents sticking electrodes with welding material
• ARC FORCE - This is an automated system stabilizing the arc, regardless of its length
• Designed for continuous operation requiring high load capacity!

MIG/MAG

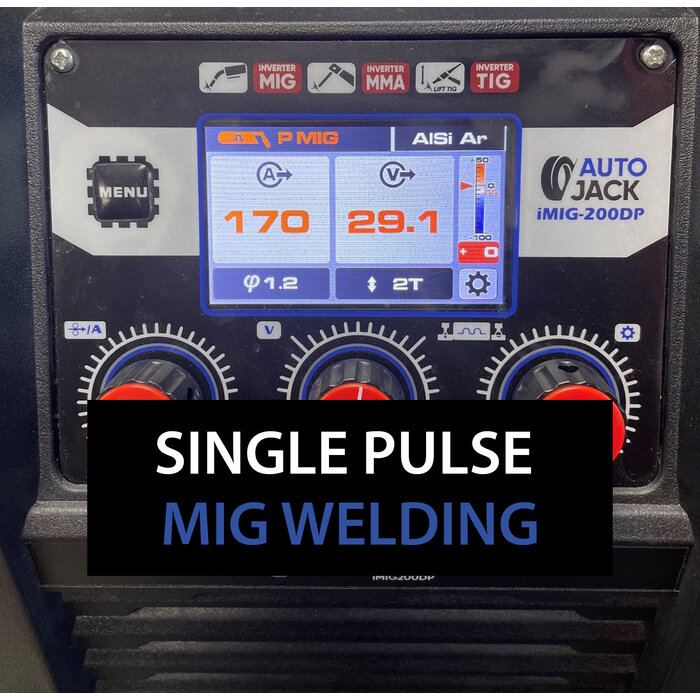

• Double, smooth pulse function
• 2/4 stroke and spot welding
• Built-in fully adjustable program for welding aluminum, carbon steel and stainless steel materials
• Reacts with the weld to produce less spatter
• Faster than TIG, suitable for most welding applications

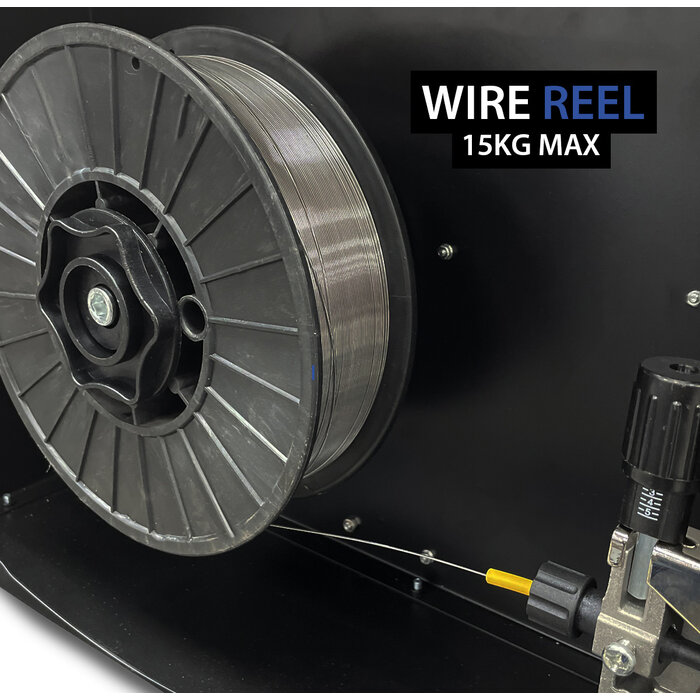

• 15 kg / 300 mm wire drum MAX load diameter

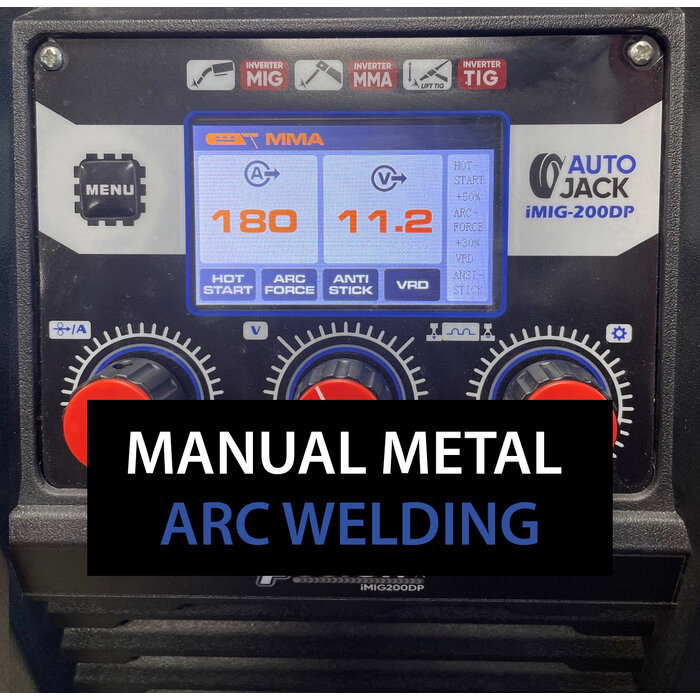

MMA

• Welding technique using a flux core wire
• Can be used for Aluminum, Copper etc
• Energy efficient power supply
• High level of control and performance

Specifications

• Power Input - 230v 16 Amp
• Rated power: 7.7kW
• Maximum current consumption: 27A
• Idle voltage: 60V
• Color digital display

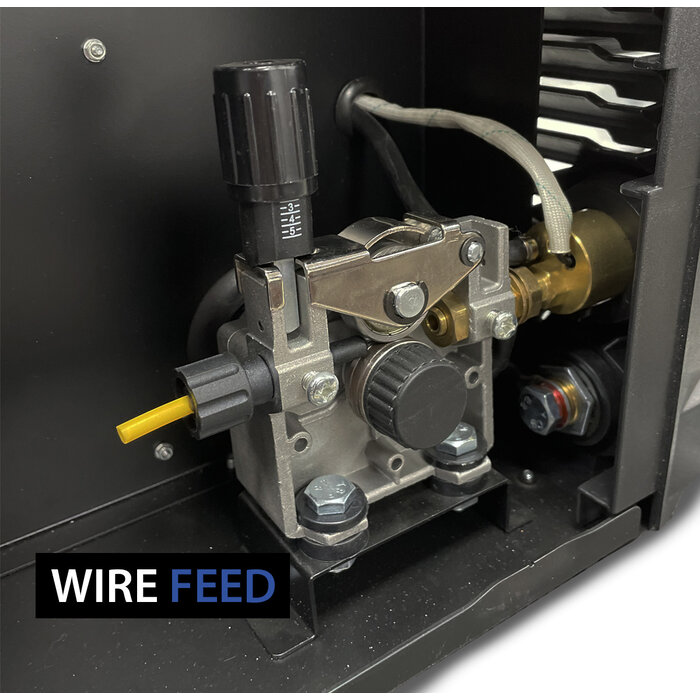

• 2-roller wire feed for 06-1.2 wire
• Switch-on time at 40oC (10 min): MIG: 60% 200A; MMA 60%: 180A
• Welding current range: MIG: 50-200A; MMA: 20-180A
• Weight - 14.4kg
• Protection: IP21S
